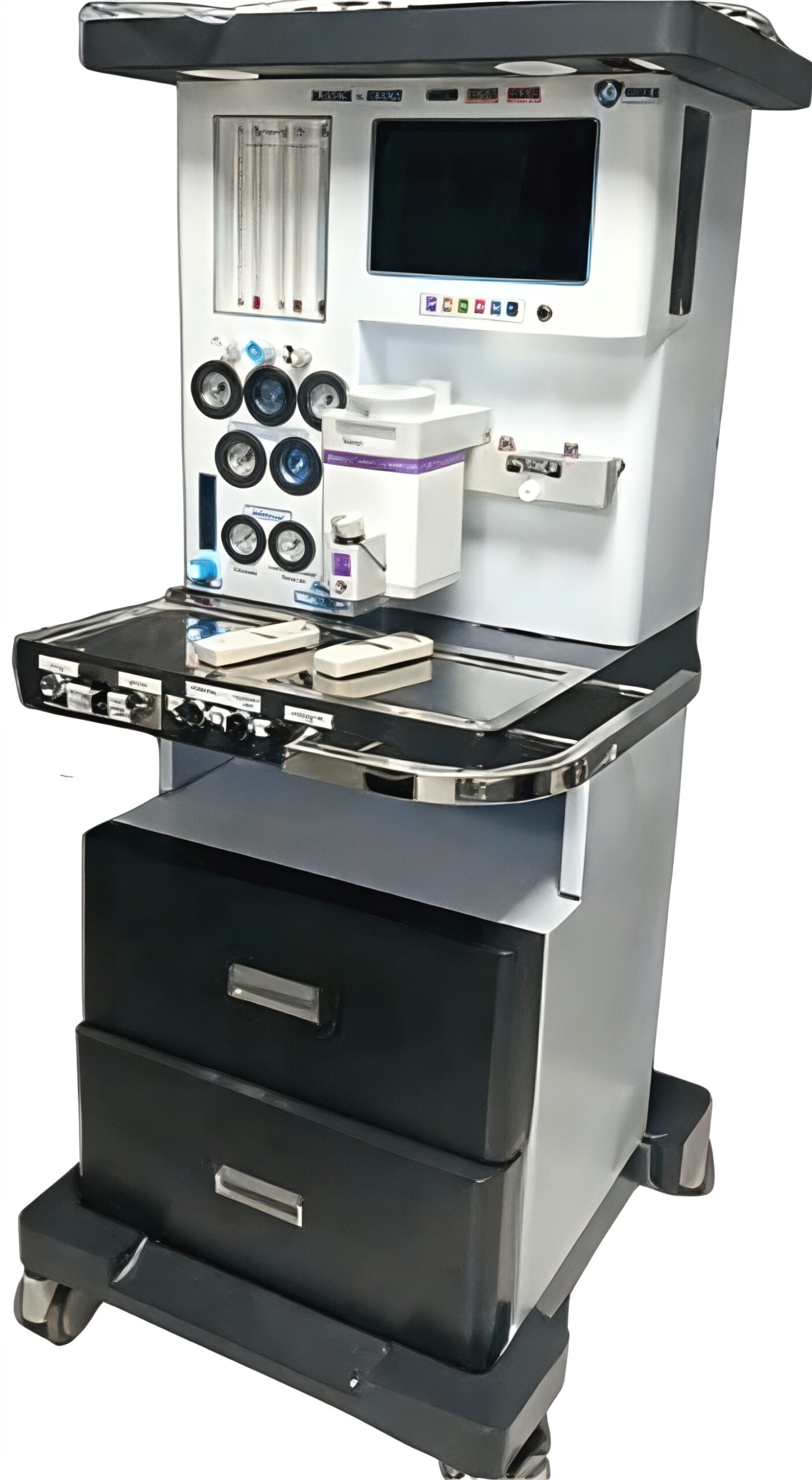

ANESTHESIA WORKSTATION (BRAND: UVW)

Technical Specification

1. Volume : 20 ml to 1500 ml
2. Pressure : 0 to 60 cm H2O
3. Insp. Time : 0.2 sec to 4 sec
4. Respiratory Rate : 0-120 BPM
5. PEEP : 0 to 30 cm H2O
6. I:E Ratio : 1.5 to 5:1
7. Trigger Sensitivity Pressure Flow and Volume Accuracy : ±5%
8. O2 Concentration : 21% to 100%
9. Requirement Tools Inspiration and Expiration
10. Oxygen Input : 4.5-6 Bar
11. Screen Size : 10.1″
12. VCMV, VACV, V-SIMV
13. PCMV, PACV, PSV
14. BI-PAP, CPAP

General Specification

1. Weight : 80 Kg
2. Dimensions : 80 x 80 x 115 cm
3. Noise : <30 DBA at 1m
4. Power Supply : 220-240 VAC
5. Internal Battery : 100 Watt (x)

Pneumatic Specification

1. Availability of Pin index yokes for gases : Oxygen and Nitrous oxide
2. Total No. of Yokes : 2 (Nitrous (1 Qty) and Oxygen (1 Qty))
3. Availability of cascading type low meters : Yes for O2, N2O and air
4. Availability of rotameter control guards in anaesthesia workstation : Yes
5. Availability of pressure gauges for cylinder and pipelines in anaesthesia workstation : Yes
6. Availability of audible and visual oxygen failure alarms : Yes
7. Minimum emergency oxygen low in litre : 35-70 LPM per minute
