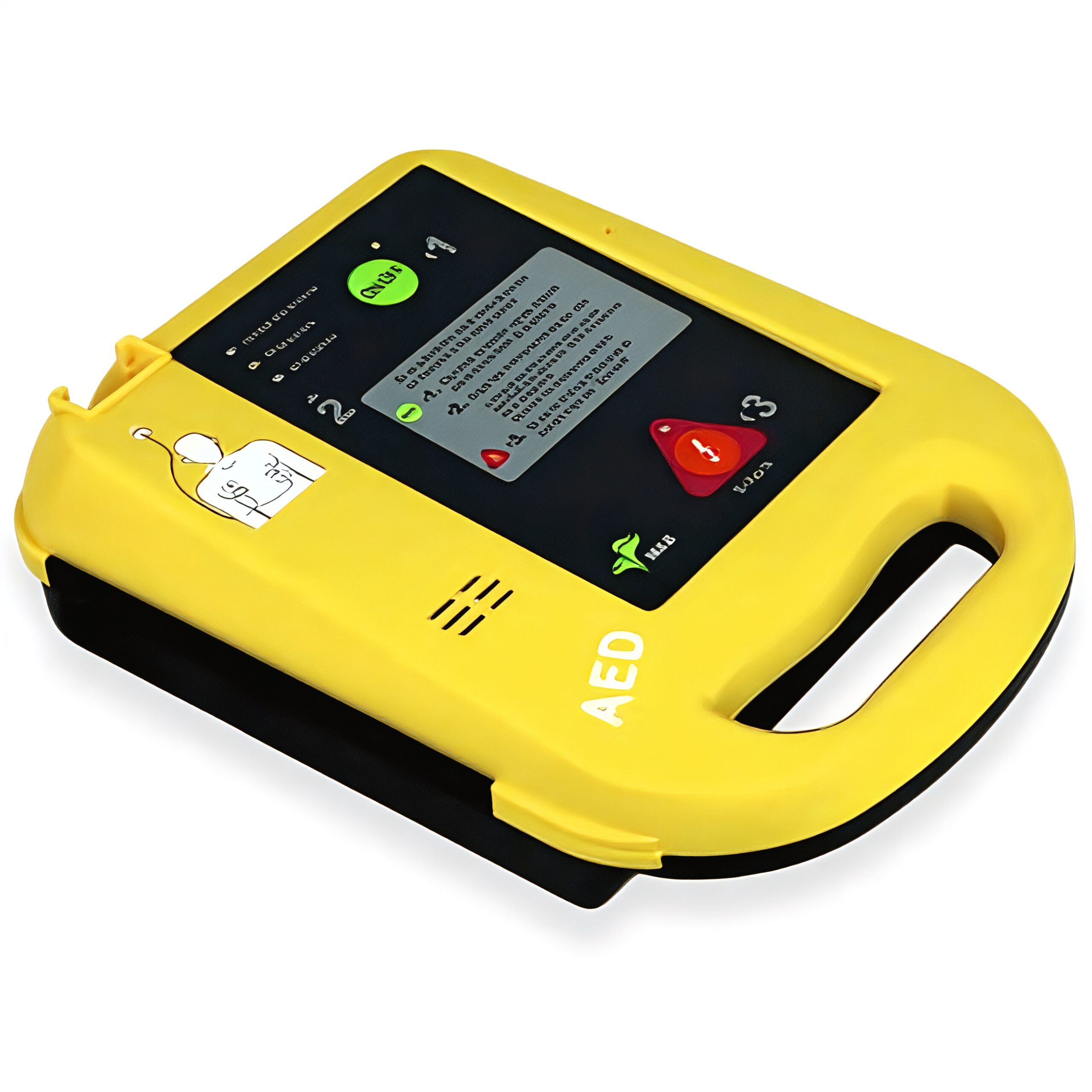

AUTOMATIC EXTERNAL DEFIBRILLATOR

Features:-

1. Operating Mode – Automatic
2. ECG Analysis Period – Typically < 10 seconds
3. Charging Time at 150 J – Typically < 10 seconds
4. Energy Steps – Adult: 150 J 150 J – 200 J Child: 50 J 50 J 50 J
5. Wave Form – Truncated Biphasic
6. Face Detection – Yes
7. Impedance Measurement – Yes
8. Motion Detection – Yes
9. Maximum Discharging – Typically 200 shocks (at 20 C with full battery)
10. Impedance Range – 25 – 200 ohm
11. Derivation – Lead II
12. Battery – LiMnO2 (15V 3000mA)
13. ECG Bandwidth – 2 – 25 Hz
14. Self Test Scope – Battery, Internal Electronics, Software
15. Self Test Schedule – Weekly, Monthly and at each start
16. Data Documentation – ECG Signal / Event / Voice Record in Internal Memory
17. Data Transfer – AED Software (USB)
18. Dimension – 95 x 280 x 250 mm
