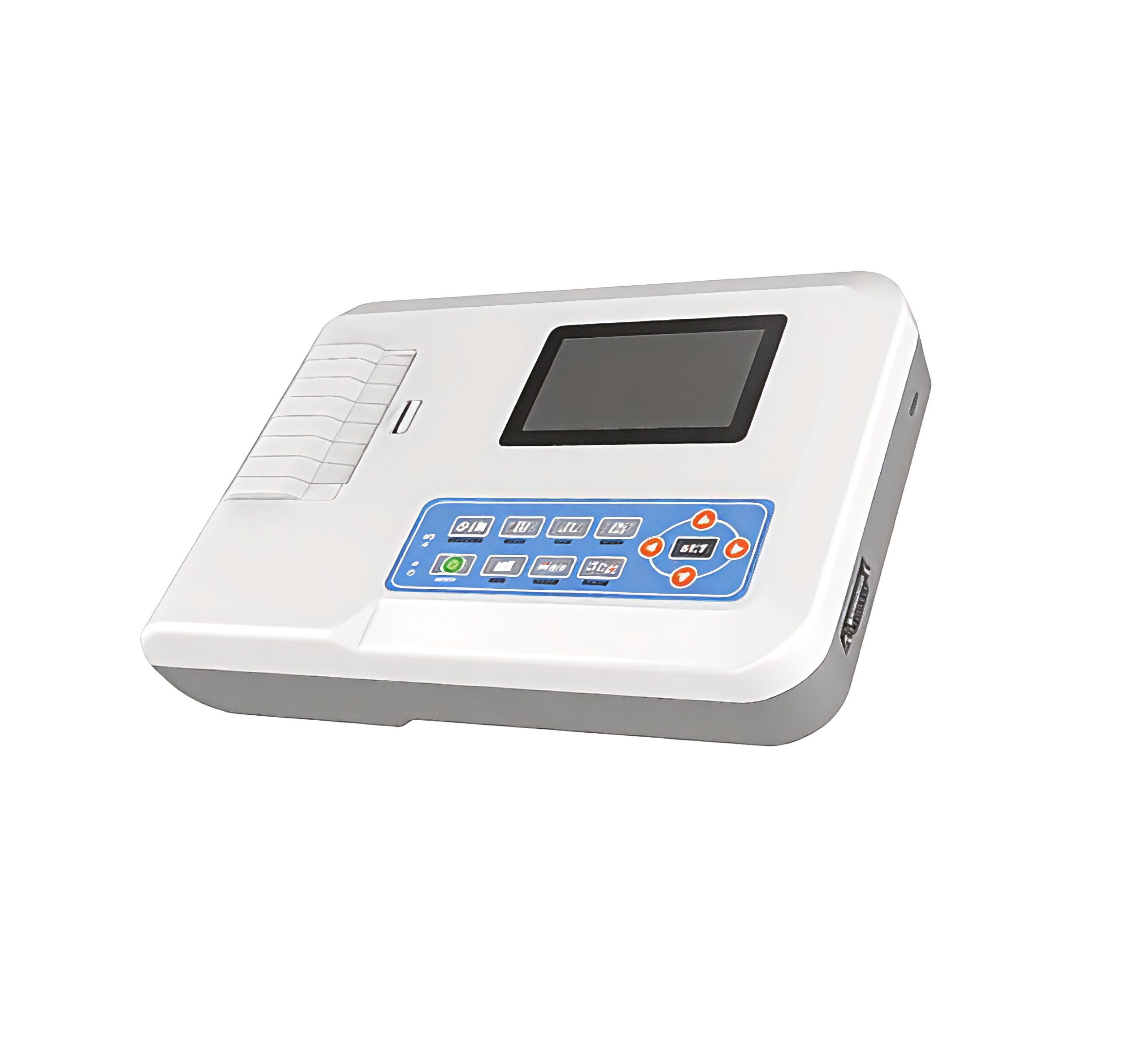

ECG MACHINE

Features:

1. Safety: Type Class I, Type CF applied part, which has defibrillation-proof applied part
2. Lead Standard 12 leads
3. Input way: Floating and defibrillation protection
4. Patient leak current <10μA
5. Sampling rate 1000Hz
6. A/D conversion 12bit
7. Frequency response 0.05Hz~150Hz (-3dB, +0.4dB)
8. CMRR ≥60dB, ≥100dB (Add filter)
9. Enduring polarization voltage ±300mV
10. Noise level ≤15μVp-p
11. EMG interference filter 25/35Hz (-3dB)
12. AC filter 50/60Hz (≥20dB)
13. Recording way: Thermal printing system (32spots/mm)
14. Recording paper 80mm(W) × 20m(L)
15. Sensitivity 5mm/mV, 10mm/mV, 20mm/mV, 40mm/mV Auto
16. Auto-record: 25mm/s, 50mm/s
17. Rhythm record: 25mm/s, 50mm/s
18. Manual-record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s

ECG Machine Box Contents:

1. Lead Cable
2. Limb Electrodes
3. Set Of Chest Electrodes
4. Thermal Recording Paper
5. Power Cord
6. Earth Wire
7. User Manual
